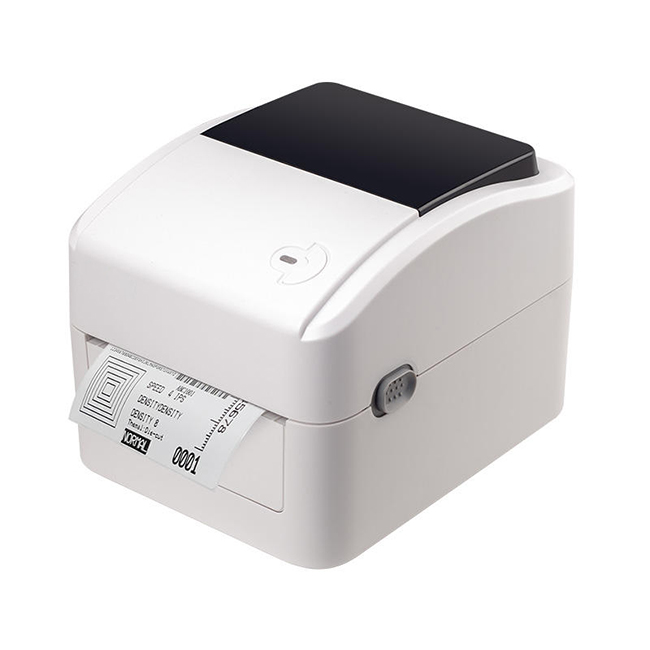

Fashionable thermal barcode printer
1) 6 inches high speed printing
2) 3 dpi and 300 dpi resolution models
3) 8MB SDRAM,8 MB Flash
4) High quality double-walled clamshell design
5) Printhead temperature intelligent control system make sure printer output stably
Parameter:
Printing Method |
Direct Thermal |
Resolution |
8 dots/mm(203 DPI) |
Interface |
USB2.0 (Standard)/Lan(Optional)/Bluetooth(Optional)/WIFI(Optional) /Peel off model(Optional) |
Optional accessories |
TF card slot, RTC clock, peel off module, Cutter module |
Max Print Speed |
152 mm (6")/s |
Max Print Width |
108mm (4.25”) |
Max Print Length |
1778mm |
Media Type |
Continuous, gap, black mark, fan-fold and punched hole |
Media Width |
20 mm ~ 115 mm |
Media Thickness |
0.06 mm ~ 0.25 mm |
Media Length |
10 mm ~1778 mm |
Paper roll diameter |
25.4 ~ 76.2 mm (1" ~ 3") |
Paper thickness |
0.06 mm ~ 0.25 mm |
Label Roll Capacity |
127 mm (5”) external diameter |
Memory |
8MB Flash Memory |
8MB SDRAM |
|
Micro SD card reader for Flash memory expansion, up to 4GB |
|
Sensor |
Gap sensor |
Printer Head opened sensor |
|
Black mark sensor |
|
Processor |
32-bit RISC CPU |
Power Supply |
Input: AC 100-240V; Output: DC 24V/2.5A |
Barcode |
1D barcode: Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code11 |
2D barcode: PDF-417, Maxicode, DataMatrix, QR code, Aztec |
|
Emulation |
TSPL \ EPL \ ZPL \ DPL |
Dimension |
215 mm x 178 mm x 155 mm |
Weight |
1.31 kg |
Safety Standard |
FCC, CE, CB, CCC |
Environment |
Operation condition: -10 ~ 50℃ (14 ~ 122 °F) ,10 ~ 90% non-condensing |
Storage condition : -40 ~ 60℃ (-40 ~ 140 °F), 10 ~ 90% non-condensing |
